Octagonal 50 Series
Commercial strength, first-fleet price.
A commercial frame, with canopy and walls made & printed by us in Cornwall on the same cloth as our flagship range.
- UK-printed canopy & walls
- Forged stainless throughout
- BS7837 fire certified
- Zip-free Type 3 walls
Octagonal 50 brochure
Sizes, specifications and package options - PDF, 0.7MB.
50mm
Octagonal upper legs in matt silver anodised 6061, with quick-release mechanisms.
30kg
Frame weight for the 3×3m - light enough for two people to handle comfortably.
5 min
Rigging time. Quick-release tension and a king-post winder make pack-down as fast.
Zero
Zips in the Type 3 wall system. Nothing to jam, ice up or fail in the wind.
Why this one
Where the money goes, and where it doesn’t.
Not every job needs an Ultra HD. If you’re kitting out a market, buying your first branded stall, or need six frames rather than one, the Octagonal 50 puts the budget where it shows.
The frame is a high quality commercial import. It has 50mm octagonal legs, forged stainless brackets throughout, quick release mechanisms and a tensioner built into the king post so you can take up the slack when the canopy starts to go baggy. It is a proper commercial frame, and we sell it because we’d be happy using it.
The canopy, walls and print are ours. Made and printed in Cornwall, on exactly the same 500d polyester and to exactly the same Pantone standards as our top-tier Ultra HD range. The part your customers actually look at is the part we make.
Frame detail
A proper commercial frame.
Four things that separate it from the gazebo in the garden centre.
01

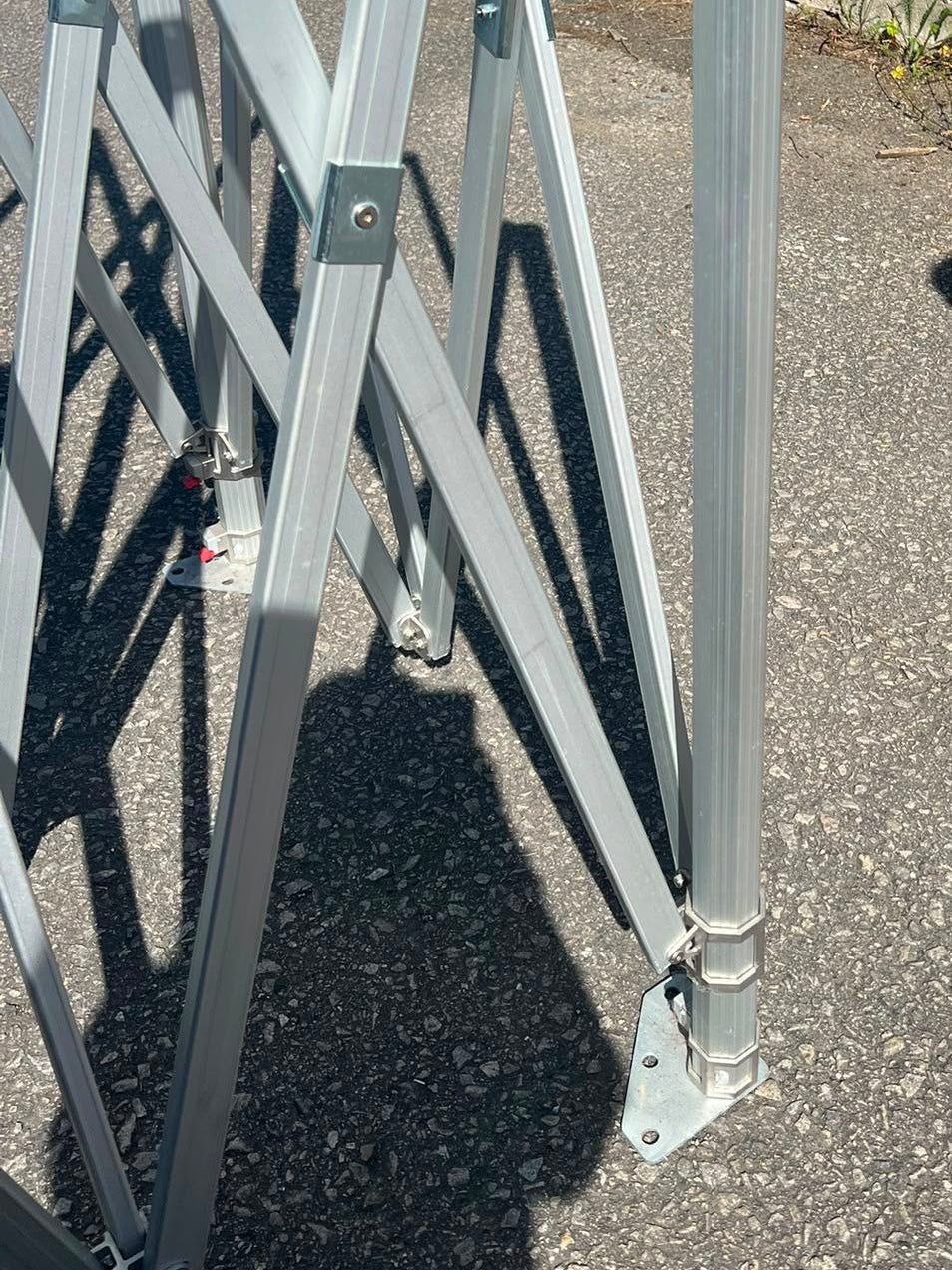

50mm octagonal legs
50×50×1.7mm octagonal upper legs with 45×45×1.7mm lowers in matt silver anodised 6061 with quick-release mechanisms for taking the tension off when you’re packing down at the end of a long day.
02
A tensioner in the king post
An integral winder in the 40×40mm king post lets you tighten the canopy as it relaxes over time. Most frames in this class have no answer to a baggy canopy at all.
03
Forged stainless throughout
Every bracket is forged stainless steel, so corrosion is a non issue, and the forgings are shaped to keep weight down rather than simply made thicker.
04
Stainless footplates
4mm stainless footplates, which can be modified to take our ground anchor system where you need it.
Wall system
Walls with nothing to break.
Type 3 walls
Included in the package
Three fully printed Type 3 walls that wrap around and cover the legs, so your graphics run continuously round the stall instead of stopping at each corner.
A plain closing wall in black or white is included too, so you can shut the stall up securely overnight.
No zips to fail
The practical bit
Zips are the single most common failure on a branded stall. They jam, they ice up, and they give out in exactly the windy conditions where you need the walls most.
There isn’t one on a Type 3. Nothing to break, nothing to replace mid-season.
In the box
What’s included
- Octagonal 50 commercial frame
- Pro canopy, printed to your artwork
- Three printed Type 3 walls
- One plain closing wall, black or white
- Protective frame cover
- Rigging tool
Please add
Not included
- Pro guying set for soft ground
- Gazebo weights for hard ground
Nothing should go up at an event without an anchoring system suited to the ground. If you already own one, check it fits before you order.
Neither a guying set nor base weights come as standard.
For the specifiers
Specification
| Specification | Octagonal 50 |
|---|---|
| Design usage | Commercial & market |
| Frame weight | 30kg |
| Rigging time | Under 5 minutes |
| Upper leg tube | 50×50×1.7mm octagonal |
| Lower leg tube | 45×45×1.7mm octagonal |
| Scissor tube | 35×18×2mm |
| Tube specification | 6061 T6, matt silver anodised |
| King post | 40×40×2mm with integral tensioner |
| Brackets | Forged stainless steel |
| Footplate | 4mm stainless |
| Canopy & wall fabric | 500d polyester |
| Fire certification | BS7837 |
| Frame manufactured in | China |
| Canopies & walls made in | United Kingdom |
Buy the Octagonal 50
Commercial strength, ready to order.
Frame, canopy and bag as a package. The canopy and walls are printed by us in Cornwall on the same cloth as our flagship range.
Octagonal 50 - plain
Black or white canopy, complete package.
From£645
Buy now

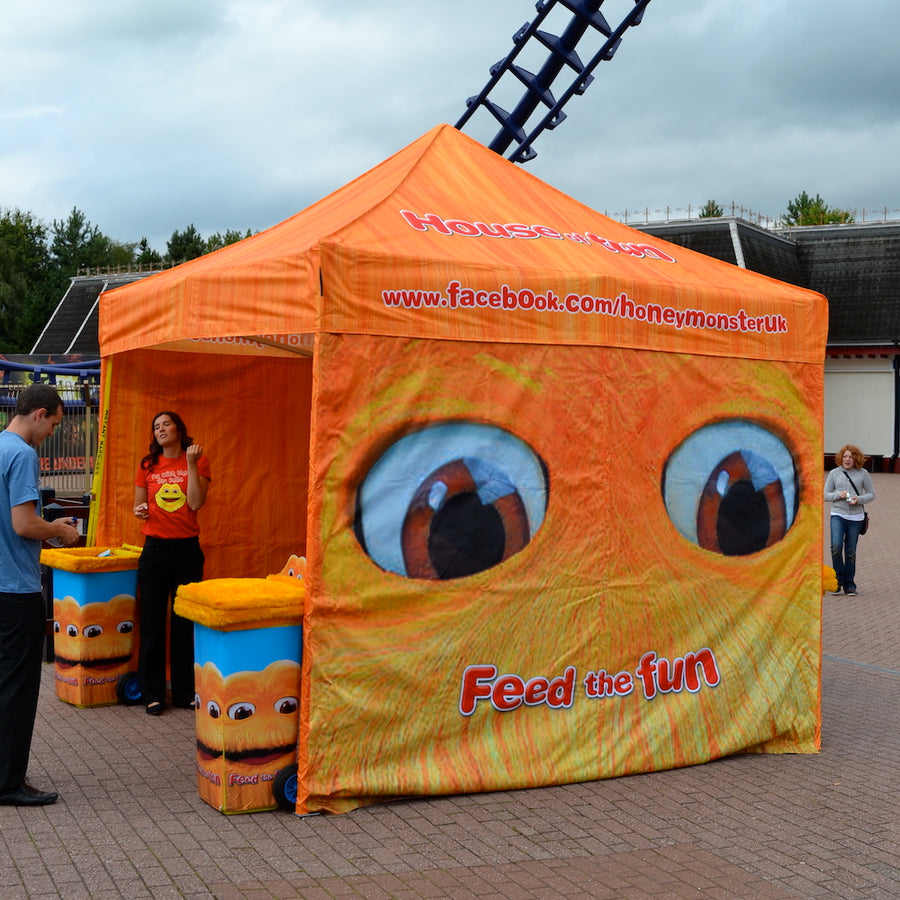

Octagonal 50 - branded
Your artwork, printed here, free visual first.
From£695
Buy now

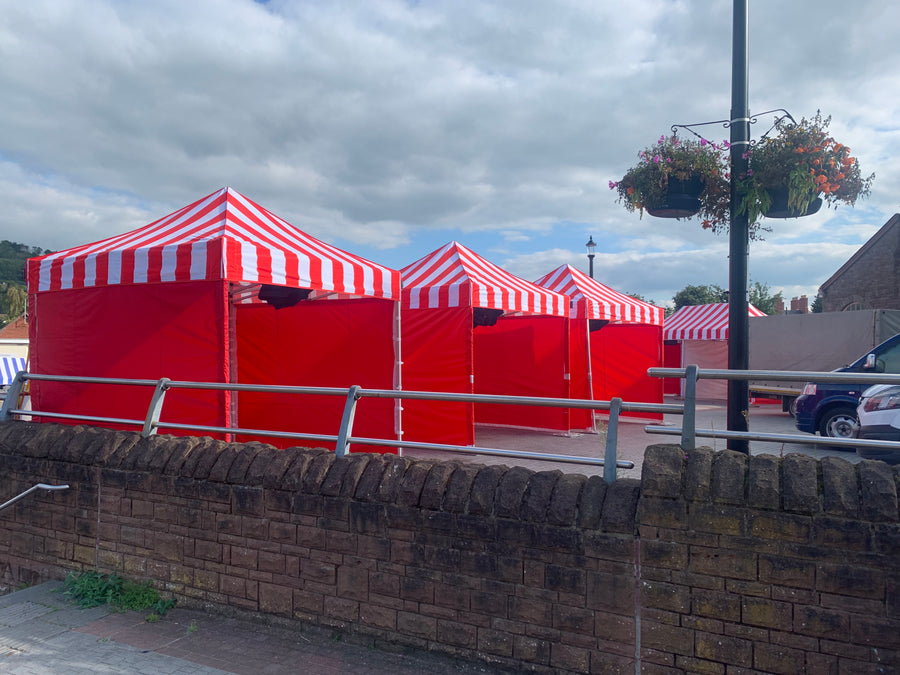

Polyester walls
All sizes, branded or plain.
From£69.95
Buy nowNot sure which size? Tell us the pitch and what you are selling and we will tell you what fits.
Artwork
Getting your graphics print-ready
Our design team has been laying artwork onto these products for over twenty years. Send a finished file or a logo on a napkin - we’ll get it right before anything goes to press.
Speak to the artwork team
Not sure whether your file will work, or how big your logo needs to be? Talk it through with the people who’ll be laying it out.
View our artwork guides
Illustrator templates for every size with the structural guides marked up, plus our full file specification so you get it right first time.
Upload artwork for a free proof
Send us what you’ve got and we’ll check resolution, colour mode and bleed, then show you up to three print-ready layouts on the product.
Send vector files where you can - .ai, .eps or a high-resolution .pdf with fonts turned to outlines and Pantone references specified. Photoshop files should be at least 300dpi at half full size. Files up to 100MB through the upload form. We always check artwork before production and come straight back to you if we spot a problem.
Next step
Tell us what you’re planning.
Sizes, print, ground conditions, how many and when. We’ll come back with a price and a free visual - and if something simpler would do the job, we’ll tell you that too.
