Pop Up Bar & Merchandise Tent

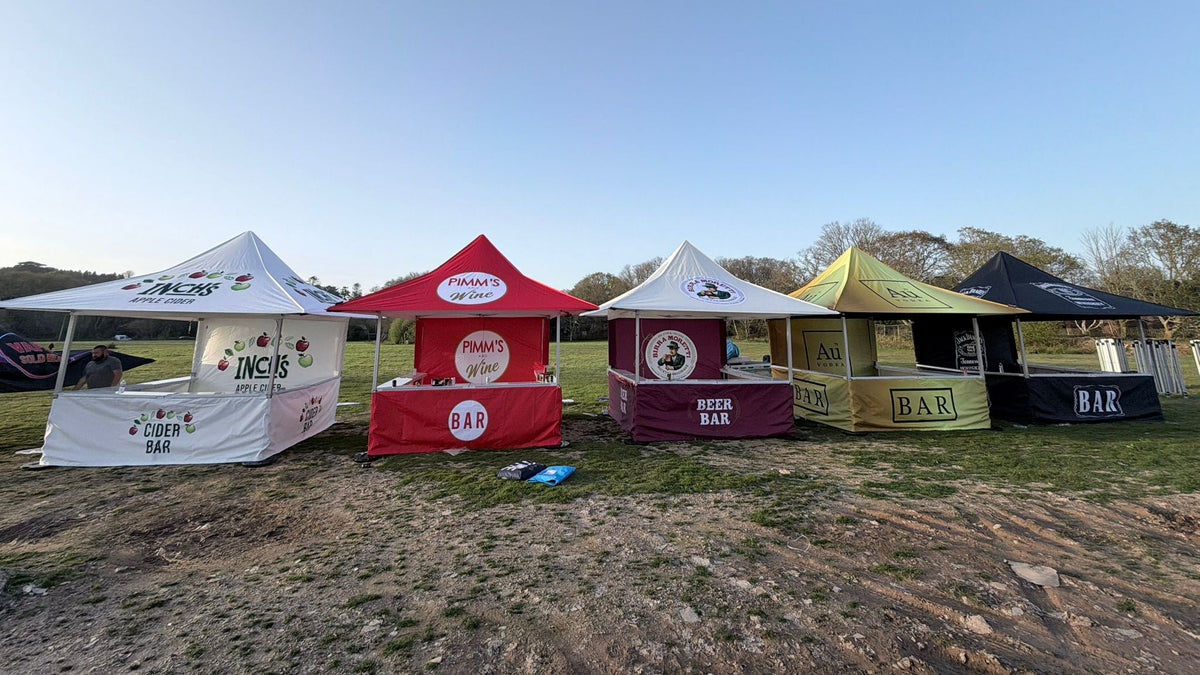

A bar you can put up in fifteen minutes.
Three drop-in aluminium counters, a fully branded canopy and a lock-up rear wall. Built and printed in Cornwall.
- Serving in 15 minutes
- Optional Counters
- 4×4m canopy
- Made in Cornwall
15 min
Frame, counters and walls, start to finish. One team, no tools.
Counters
Optional custom made 3m aluminium counters, drop-in mounted and folding flat for transport.
4×4m
Canopy over a 3×3m frame, half a metre of cover past the counters on every side.
51mm
Ultra HD upper legs. The bar is built on our strongest frame, not a lighter one.
Why this one
A Purpose-Built Bar, Not Just a Tent with a table
Ditch the makeshift trestle tables and flapping banners. Our bar/merchandise tents are engineered for a premium look and flawless performance:
Seamless Branding: Half-height walls slide into built-in Keder channels for a taut, professional, flush finish.
Heavy-Duty Build: Three 3m aluminum counters drop directly into integrated brackets on our rugged Ultra HD frame legs.
Ultimate Weather Protection: An oversized 4×4m canopy over a 3×3m frame ensures your staff and stock stay dry in adverse weather.
Rapid Assembly: Set up your entire bar in under 15 minutes. When you're done, the counters fold in half for effortless transport.
Used by Formula 1 and the Paris Olympics for program distribution
What makes it different
Built to serve from.
Five things a gazebo with tables in front of it will never do.
01

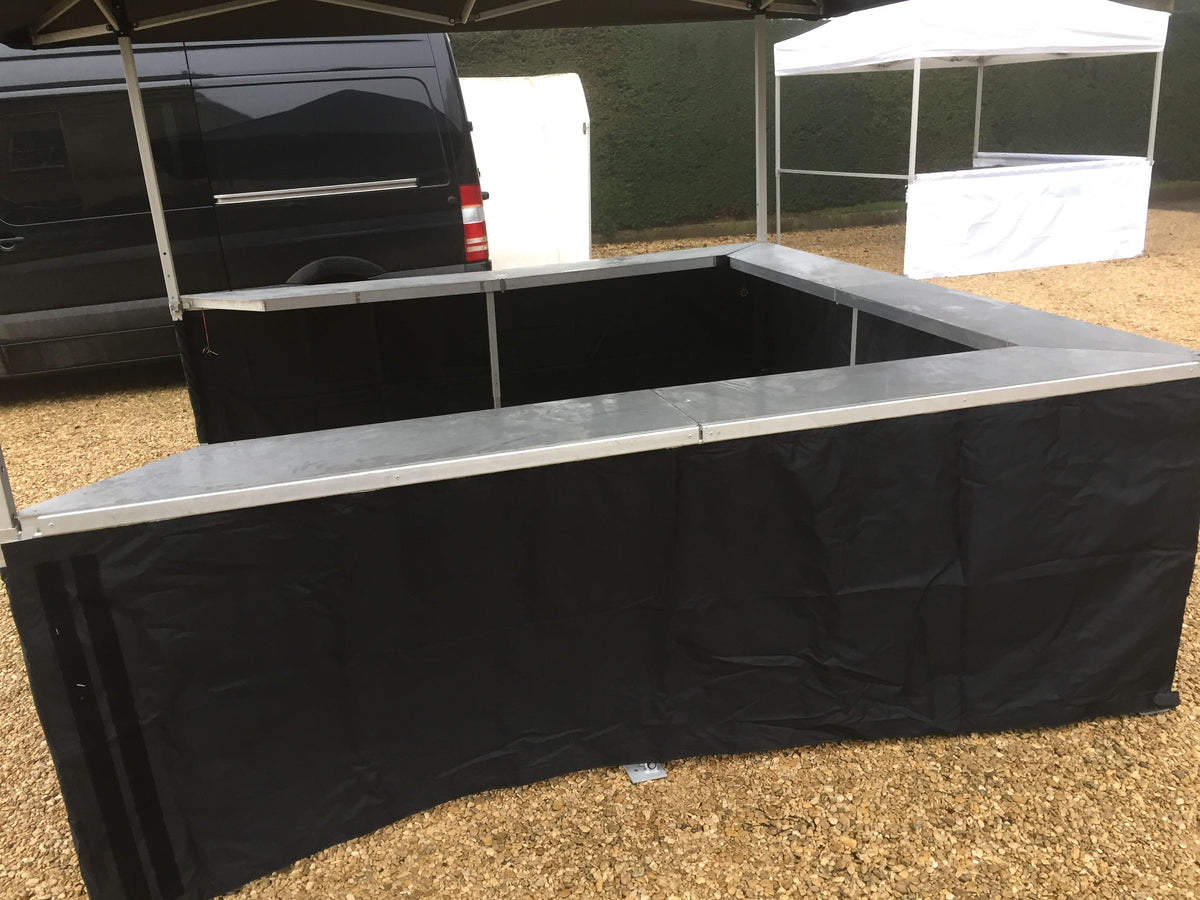

Counters that drop straight in
Three custom 3m aluminium counters locate into brackets built into the frame legs - no clamps, no improvising. Adjustable folding centre legs take a load of up to 40kgs per counter, and each counter folds in half for easy transport.
02

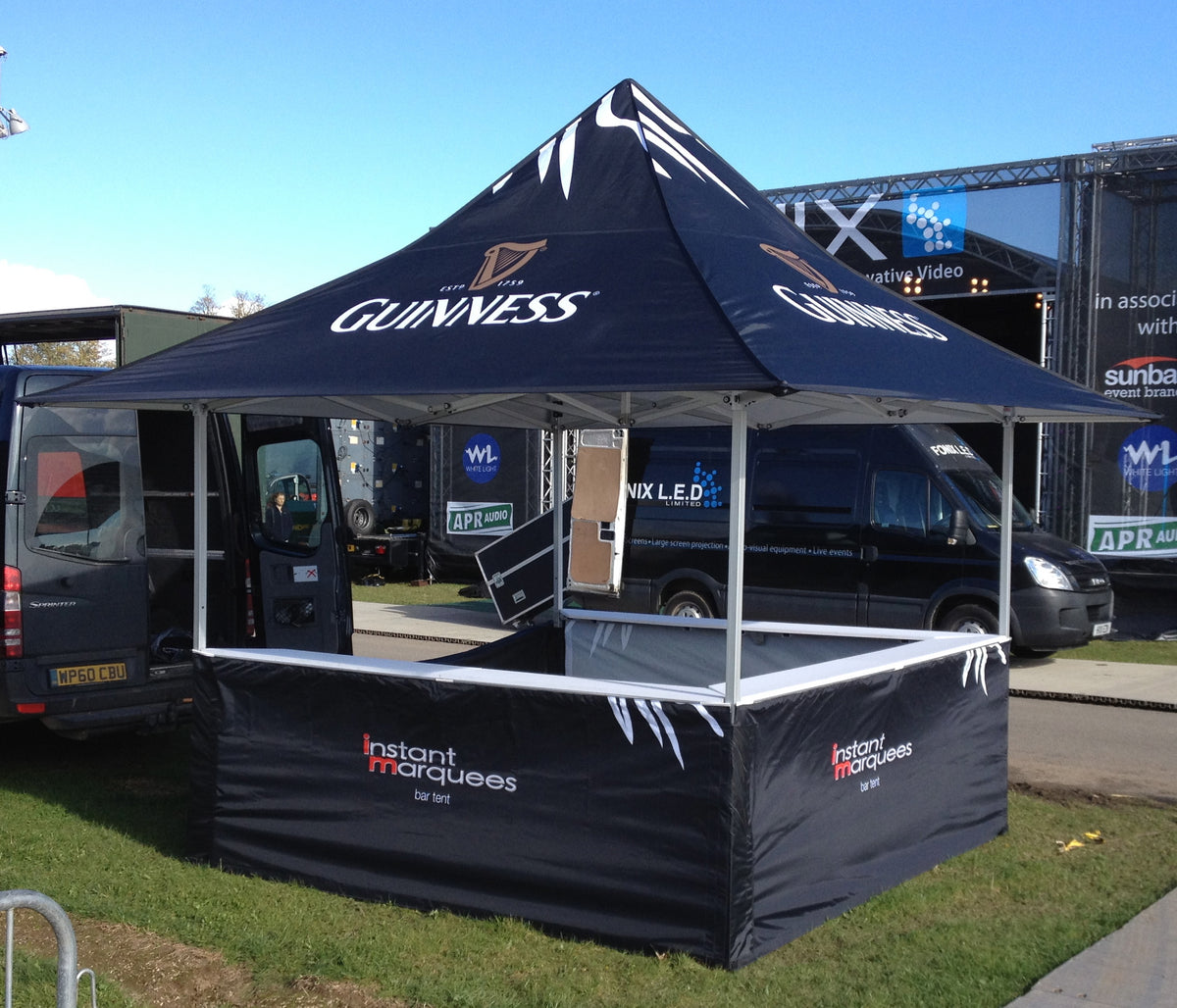

A proper Keder finish
The 9m half-height wall slides into a Keder channel machined into the counters. The result is taut, crisp and completely flush - the difference between a branded bar and a banner tied to a table.
03

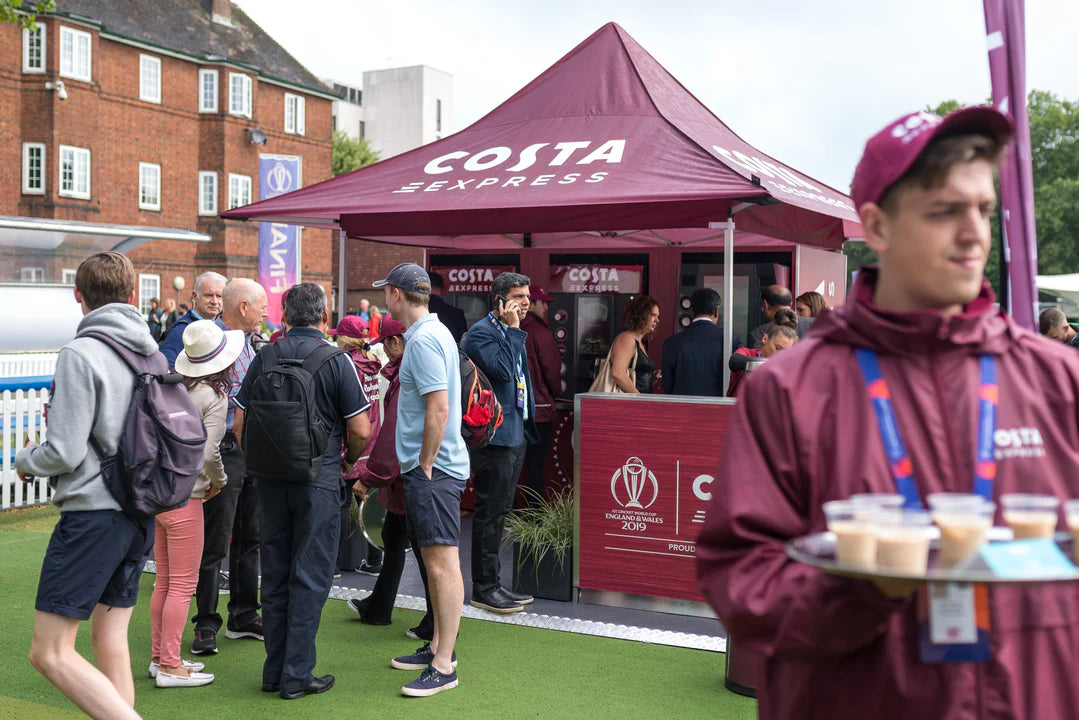

Branding on every surface that faces out
Canopy, half-height wall and rear wall all printed to your artwork and matched to your Pantone references. The rear wall carries an internal print too, so the view from behind the bar looks as considered as the view from the front.
04

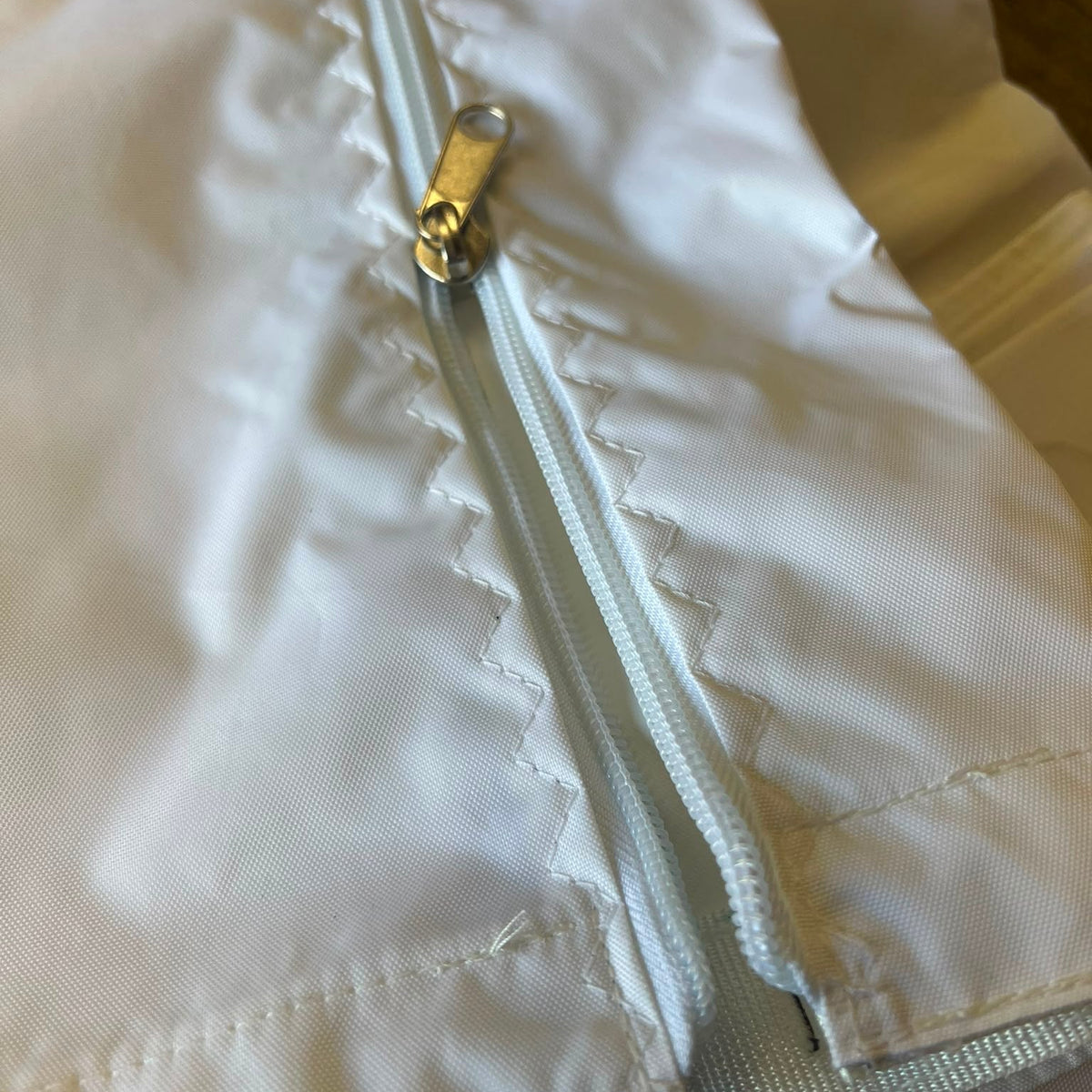

Staff in, public out
A single heavy-duty vertical zip in the rear wall lets your team come and go quickly while the serving area stays secure overnight.
05

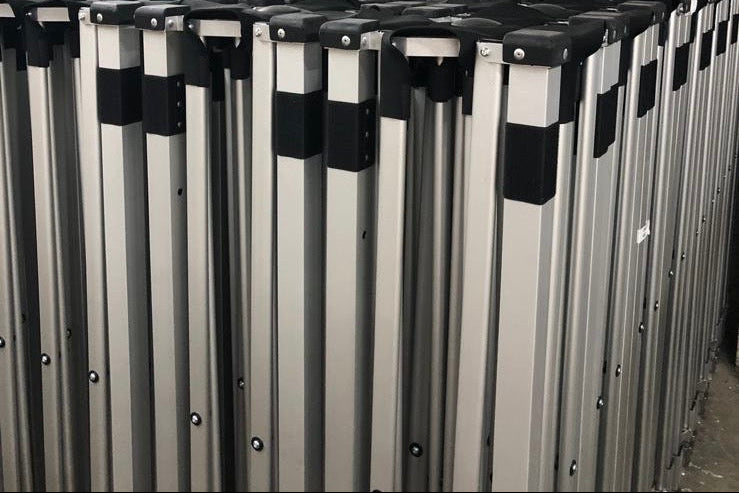

Built on the Ultra HD frame
Same 51mm upper legs, same forged stainless brackets, same neoprene jackets and welded footplates as our flagship stall - with the counter/stability bar brackets come as standard with all Ultra HD frames.
For the specifiers
Specification
| Specification | 3×3m Bar Tent |
|---|---|
| Frame size | 3×3m |
| Canopy coverage | 4×4m |
| Frame weight | 40kg |
| Frame & canopy weight | 48kg |
| Overall height | 3.5-3.9m |
| Ground to internal framework | 2.21m |
| Walk-in height | 2.15m |
| Width between upper legs | 3.88m |
| Upper leg | 51mm heavy-duty aluminium |
| Lower leg | 42mm heavy-duty aluminium |
| Scissor tube | 40×20mm oval section |
| Fittings & joints | Extruded aluminium and forged stainless steel |
| Rigging time | Under 15 minutes |
No plastic joints anywhere in the frame. Every fitting is either extruded aluminium or forged stainless steel.
In the box
The complete kit
- 3×3m Ultra HD frame with built-in counter brackets
- 3 folding aluminium counters with adjustable centre legs
- Printed 4×4m canopy for extended overhead cover
- Printed 9m half-height wall, three sided
- 3m full-size rear wall with internal print
- Integrated single zip door
- Heavy-duty guying set
Where it works
Ground conditions
- Grass, turf or earth - pin it down with the heavy-duty guying set included in the kit
- Concrete, tarmac or indoors - perfectly stable, no pegs needed indoors
Outdoors on hard ground you must add weights. You cannot peg into tarmac, and a 4×4m canopy catches a lot of wind. Tell us about your site and we’ll advise how many you need.
Buy the bar tent
A working bar, in one box.
Frame, printed canopy, counters and walls as a package - or add counters to a frame you already own.
3x3m bar tent package
Fully branded, counters and walls included.
From£2,495
Buy now
3m drop-in counter
Folding aluminium, drops into the leg brackets.
From£275
Buy nowCounters drop into any Ultra HD frame, so you can turn a gazebo you already own into a bar.
Artwork
Getting your graphics print-ready
Our design team has been laying artwork onto these products for over twenty years. Send a finished file or a logo on a napkin - we’ll get it right before anything goes to press.
Speak to the artwork team
Not sure whether your file will work, or how big your logo needs to be? Talk it through with the people who’ll be laying it out.
View our artwork guides
Illustrator templates for every size with the structural guides marked up, plus our full file specification so you get it right first time.
Upload artwork for a free proof
Send us what you’ve got and we’ll check resolution, colour mode and bleed, then show you up to three print-ready layouts on the product.
Send vector files where you can - .ai, .eps or a high-resolution .pdf with fonts turned to outlines and Pantone references specified. Photoshop files should be at least 300dpi at half full size. Files up to 100MB through the upload form. We always check artwork before production and come straight back to you if we spot a problem.
Next step
Tell us what you’re planning.
Sizes, print, ground conditions, how many and when. We’ll come back with a price and a free visual - and if something simpler would do the job, we’ll tell you that too.
